Zigbee smart door sensor play an important role in smart home systems due to their advantages of low power consumption, low cost, and high security. By reasonable installation and use, more intelligent and convenient security protection and automation control services can be provided for households.
Low power consumption: Zigbee devices have extremely low power consumption in standby mode.
Low cost: The hardware and software implementation costs of Zigbee technology are relatively low.
High capacity:Zigbee networks support a large number of device connections, and a master node can manage multiple child nodes.
Self networking capability: Zigbee devices can automatically network without manual intervention, improving the convenience of network deployment.

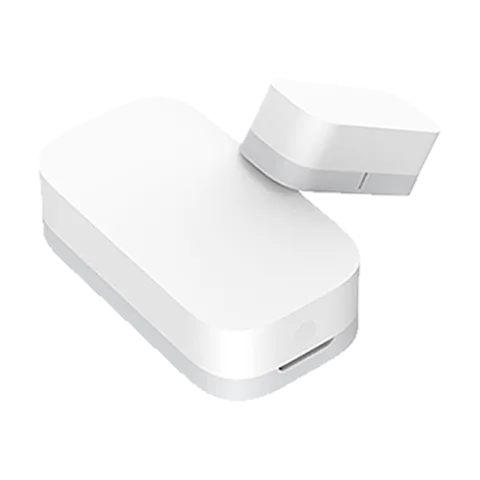

Product model: NSDS
Communication Method: ZigBee
Product Category: Door and Window Sensors
Product Color: White (customizable)
Battery Type (option): The button battery
Function Description
1. ZigBee door magnet
2. Input voltage: DC3V (button battery CR1632, 3V/150mAH)
Has Passed Product Certification: RoHS
Product Material: PC shell
Packaging Size: 75*40*30 mm (customizable)
Warranty Period: 24 month
Packing List: Door magnetic host x 1, door magnetic auxiliary machine x 1, PE bag x 1, instruction manual x 1
Delivery Time for Bulk Goods: 21 day
Power Supply Mode: Button battery CR1632, 3V/150mAH

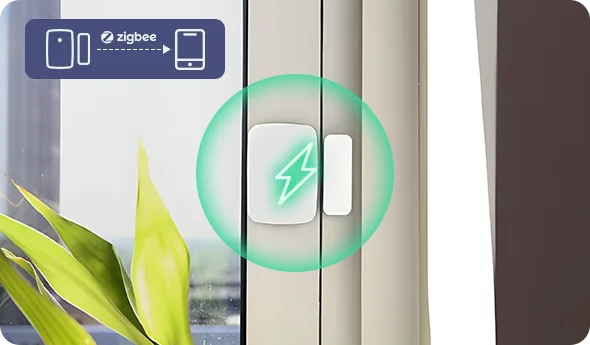

Zigbee smart door sensor typically operate based on the reed switch principle. A reed switch is a device made of soft magnetic material that contains two contacts inside. When there is no magnetic field, these two contacts are separated; When magnetized by a magnetic field, the two contacts will come into contact, thereby connecting the circuit. In practical applications, magnets are usually fixed on doors, while reed switch components are fixed on door frames close to the magnets. When the door is closed, the magnet approaches the reed switch and the circuit is connected; When the door is opened, the magnet moves away from the reed switch and the circuit is disconnected. Through this method, Zigbee smart door sensors can monitor the real-time opening and closing status of the door.
Due to the use of soft magnetic materials in door and window sensors, if they are in a strong magnetic field environment, they may be mistakenly classified as closed. Therefore, it is advisable to avoid placing the sensor near strong magnetic fields during installation.
If sensors are installed on iron doors and windows, attention should be paid to the attenuation effect of wireless signals, which may cause unreliable communication with the gateway. It is recommended to avoid installing on iron safety doors and use non-metallic doors and windows as much as possible.
The internal contacts of the reed switch are not fixed and can move. Strong vibrations may lead to misjudgment. Therefore, it is recommended to install the reed switch in areas with less vibration, such as door and window frames.
Each model of door and window sensor has an effective distance limit. During installation, it is important to ensure that the distance between the sensor and the magnet is within an effective range, otherwise it may result in the inability to detect the closed state
